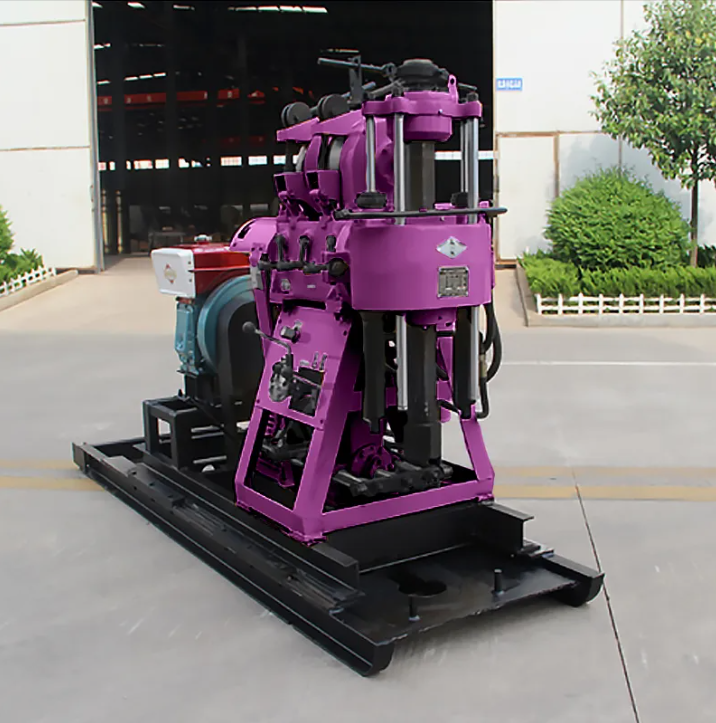

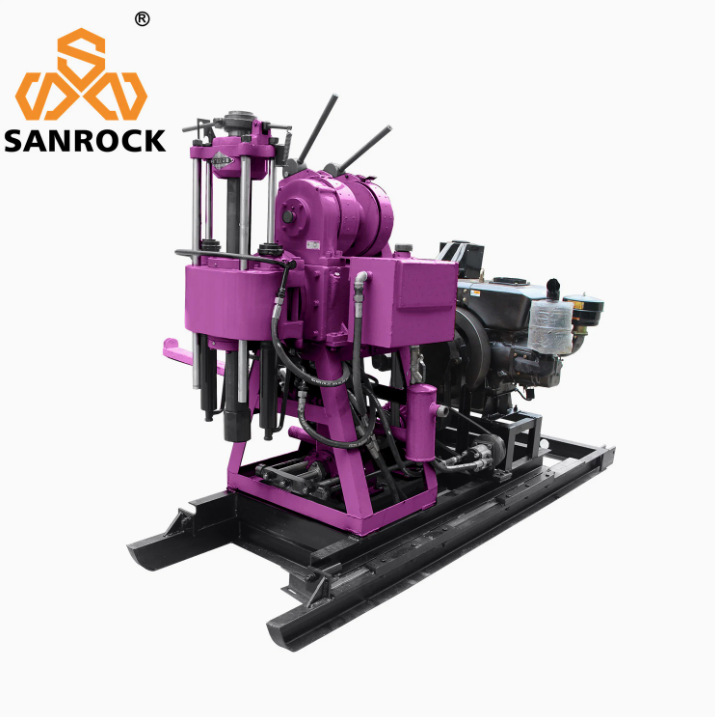

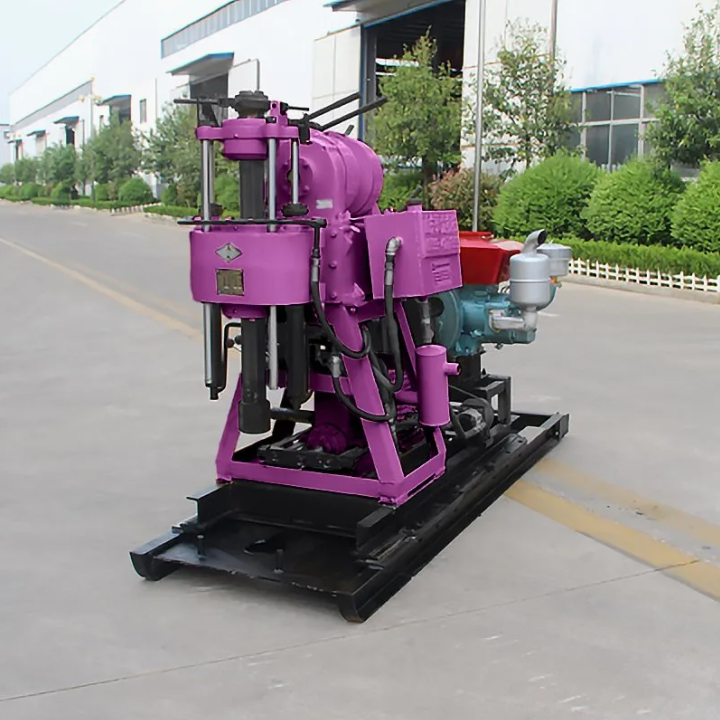

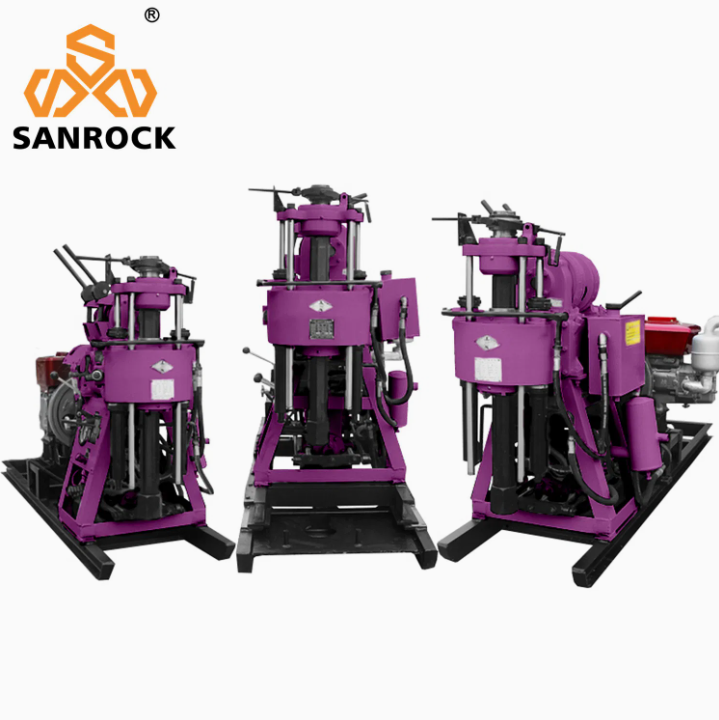

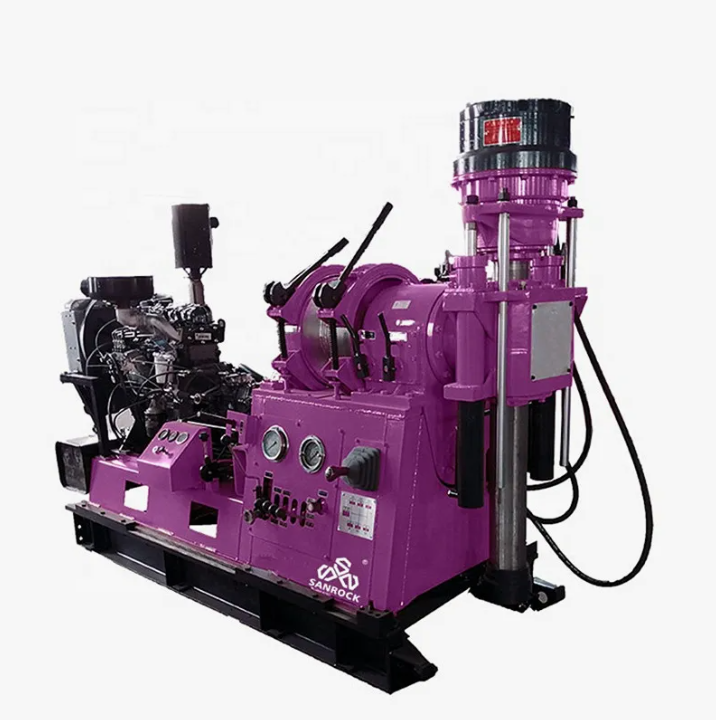

Core Drilling Rig Machine Geological Exploration Src200 Hydraulic Core Drilling Rig

Name: Core Drilling Rig Machine Geological Exploration Src200 Hydraulic Core Drilling Rig
Address: Japan

Online Technical Services

$9,390.00

These series are belong to light weight hydraulic drilling rig, and widely usd for general geological exploration of railway, road, bridge, dam and tall building base, geological core drilling , small grouting holes, blasting holes, civil wells and earth central air conditioning, etc.
Feature:
Feeding by hydraulic cylinder, the drilling efficiency is higher and it can save labor. The machine is equipped with taper clutch,with characteristics of strong torque transmission, easy operation and free maintenance.
Vertical spindle are fixed by four groups of bearings to ensure that rotator has enough rigid for gravel layer and other complex geological conditions.

Model	SRC200
Drilling depth (M)	200
Terminal diameter (mm)	75
Drill rod diameter (mm)	42,50,60
Drilling inclination (°)	90-75
Supporting power (KW)	15
Weight (kg)	880/970
Drilling rig size (M)	2.7X0.9X1.5
Vertical axis
Vertical axis speed (r / min)	64/128/287/557
Vertical axis stroke (mm)	450
Hoist
Single Rope Lift (KG)	2500
Single rope increase speed (m / s)	0.12-0.95
Wire rope diameter (mm)	12.5
Wire rope capacity(m)	35
Drill tower
Rated load(ton)	18
Effective height (m)	6.5
Mud pump
Flow(L/min)	145
Pressure(MPa)	1.2
Round-trip	93
Water absorbing pipe diameter (mm)	51
Water pipe diameter (mm)	38

1.what can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver
,rotary drill rig ,underground jumbo drill rig ,screw air compressor,DTH hammer,drill rod,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
