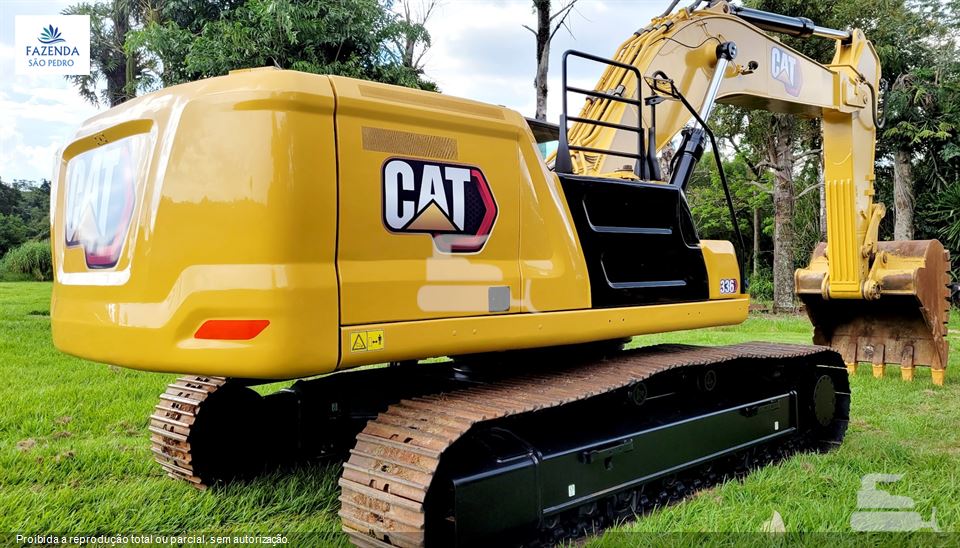

Name: CATERPILLAR 336D2L ME Excavator
Address: Cheltnam Court, Chelsea Place, Trinity, Pasco County, Florida, 34655, United States

Overview

The 336D2 L incorporates innovations to improve your job site efficiency through low owning and operating costs, excellent performance, and high versatility.

Specifications

Units:

Engine
Engine Model	Cat® C9 ACERT™
Net Flywheel Power	279 hp
Bore	4.41 in
Stroke	5.87 in
Displacement	537 in³
Engine Power - ISO 14396	280 hp
Net Power - SAE J1349/ISO 9249	279 hp
Note (2)	The field-proven C9 ACERT engine can work efficiently at altitudes up to 2300 m (7,546 ft).
Emissions	The Cat C9 ACERT meets exhaust emissions equivalent to Japan 2006 (Tier 3), U.S. EPA Tier 3, EU Stage IIIA and China Stage III Nonroad emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator.

Weights
Operating Weight	81761 lb

Swing Mechanism
Swing Speed	8.3 r/min
Swing Torque	80144 ft·lbf

Drive
Maximum Travel Speed	2.9 mT/hr
Maximum Drawbar Pull	67555 lbf
Maximum Gradeability	70%/30°

Hydraulic System
Boom Cylinder - Bore	5.9 in
Stick Cylinder - Bore	6.7 in
Swing System - Maximum Flow	70 gal/min
Boom Cylinder - Stroke	56.7 in
Maximum Pressure - Travel	5076 psi
Maximum Pressure - Equipment	5076 psi
DB Bucket Cylinder - Bore	5.9 in
Maximum Pressure - Swing	4061 psi
Pilot System - Maximum Flow	11 gal/min
Stick Cylinder - Stroke	68.4 in
Pilot System - Maximum Pressure	580 psi
Main System - Maximum Flow - Total	148 gal/min
DB Bucket Cylinder - Stroke	45.3 in
TB Bucket Cylinder - Stroke	53.4 in
TB Bucket Cylinder - Bore	6.3 in

Service Refill Capacities
Fuel Tank Capacity	163.79 gal (US)
Cooling System	10.57 gal (US)
Engine Oil	10.57 gal (US)
Final Drive - Each	2.11 gal (US)
Hydraulic System - Including Tank	108.31 gal (US)
Hydraulic Tank	46.2 gal (US)
Swing Drive	5.02 gal (US)
